Remote Methane Laser Gas Detector Long Distance for Buried Pipeline Refinery Gas Leak Inspection
Description:
AiLF Instruments is a leading manufacturer and supplier of remote gas leak detectors for the natural gas industry. Our technology is based on the principle of absorption infrared spectroscopy using a diode laser with tunable frequency. Together with advanced algorithm, it can display the gas concentration at ppm•m.
L10 Remote laser methane detector can detect methane leaks up to 100 meters, ensuring extensive coverage for gas leak detection.The portable laser methane gas detector is easy to hold and operate, providing comfort and precision for gas detection during inspections.
A compact Remote laser methane detector can be configured with a sight scope for long-distance aiming and accurate leak pinpointing, enhancing detection efficiency.
The Remote laser methane leakage detector offers millisecond-level rapid response, significantly reducing inspection time and improving workplace safety and productivity.
Laser Absorption Spectroscopy (TDLAS):
The core of these remote laser gas detection systems is often TDLAS (Tunable Diode Laser Absorption Spectroscopy). This remote laser gas detector technology emits a laser beam and measures how much of the laser light is absorbed by methane molecules in the air. The laser beam of the Remote laser methane leak detector is transmitted towards the target. Once reached, the beam is then reflected back to the detector for analysis. The results show on
the display screen immediately.
Advantages:
The remote laser methane leak detector range offers a 0.1 second response to detected methane, over an expected 10-year laser sensor life. User settable audible alerts allow an operator to quickly scan for methane over a wide area, without having to use a reflector. From Natural gas pipeline to biogas, fast leak detection means improved safety and environmental impact and increased profitability through reduction of gas loss and tighter management of infrastructure maintenance.
Parameters:
|
Model
|
L10 | L10M
|
Detection Subject
|
Methane(CH4)
|
|
Measuring Principle
|
Laser Absorption Spectrum
|
Detection Laser Class
|
Class I Eye Safe
|
|
Resolution
|
5 ppm·m
|
Indication Laser Class
|
Class IIIR No direct sight or instrument observation
|
|
Response Time
|
0.1s
|
Enclosure Protection Class
|
IP68
|
|
Maximum Detection Distance
|
100m | 50m
|
Explosion-proof Grade
|
ATEX Exib IIC T4 Gb
|
|
Concentration Range
|
0~100,000 ppm·m
|
Operating Temperature
|
-20 ~ 50 ℃
|
|
Power supply and endurance
|
Lithium battery > 10h
|
Operating Humidity
|
< 98%RH, no condensation
|
|
Main Unit Dimension
|
0.38kg | 0.36kg
|
Main Unit Dimension
|
170 x 52 x 52 mm
|
Characters:
● Remote methane leak detection
● Leak survey report generated
● Leak detection and repair (LDAR)
● Surface emissions monitoring
● Emergency Response and HazMat
● Long distance >330 feet (100 meters) methane leak detection
● Sensitive to 5ppm•m
● Audible and visual alarms
● Intrinsically safety laser gas detector
● No warm up or cool down, full day battery life
● Free phone App available
Application:
Natural Gas Leak Detection
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructures.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.
|
|

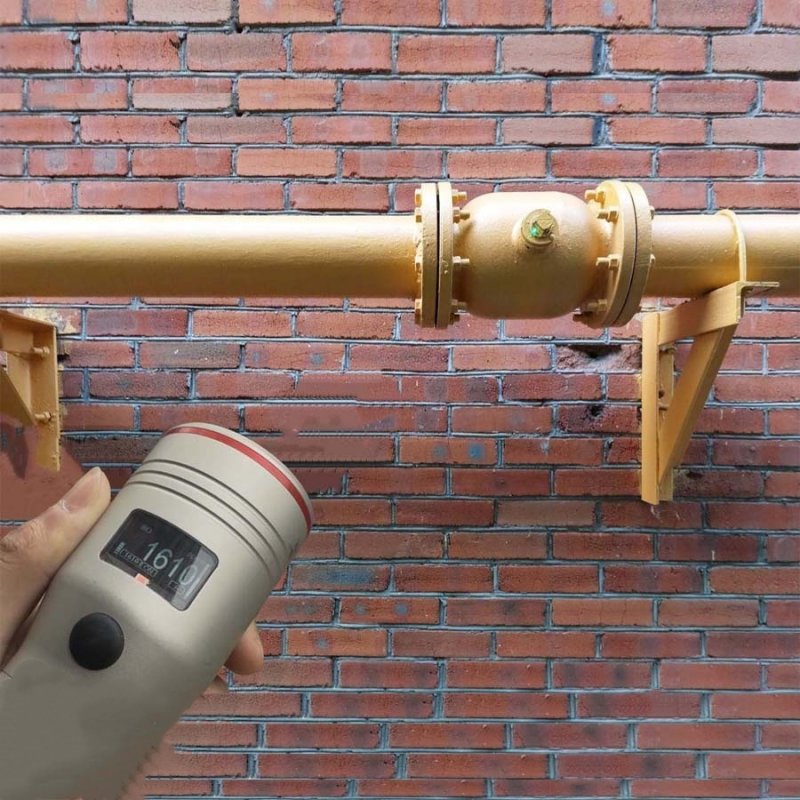

Remote Methane Laser Gas Detector Long Distance for Buried Pipeline Refinery Gas Leak Inspection Images
|
